PT-001/M Woodwork Router

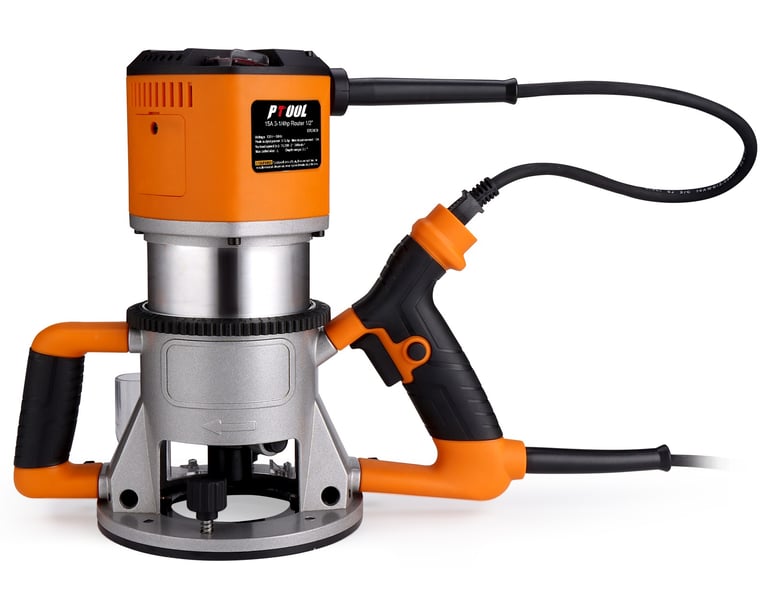

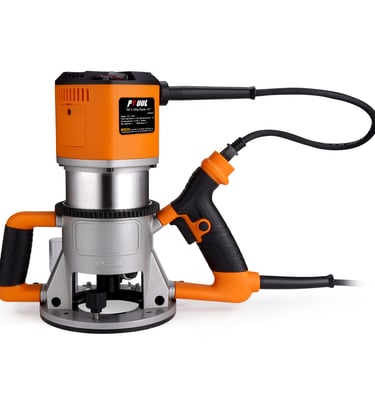

PT-001 3.25 HP Router

Professional

Powerful

Precise

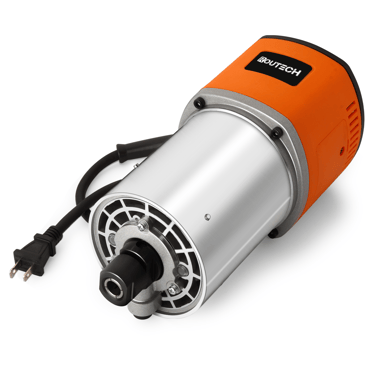

PT-001M Router Motor

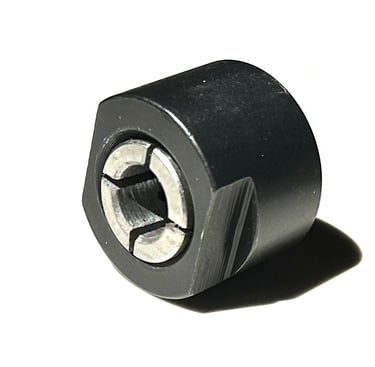

1/2" Collet Set

1/4" Collet Set

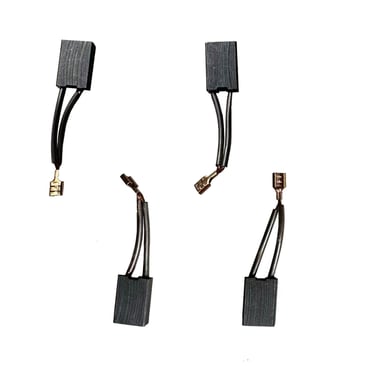

Carbon Brushes

Voltage: 120V 60Hz
Rated Power: 2600W
6 speeds: 10000, 12000, 14000, 16000, 19000, 21000RPM
Collets: 1/2", 1/4"
Max. cutting diameter: 1-3/4" with guide bush mounting plate attached
Max. cutting diameter: 3" without guide bush mounting plate attached
Max. cutting diameter: 2" when use with router table, without guide bush mounting plate attached
Max. cutter shank: 1/2"
Max. cutting depth: 3-1/8" Cord length 10'

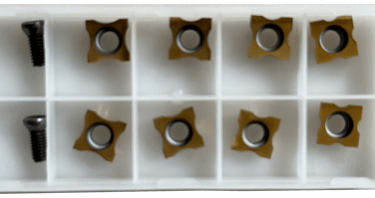

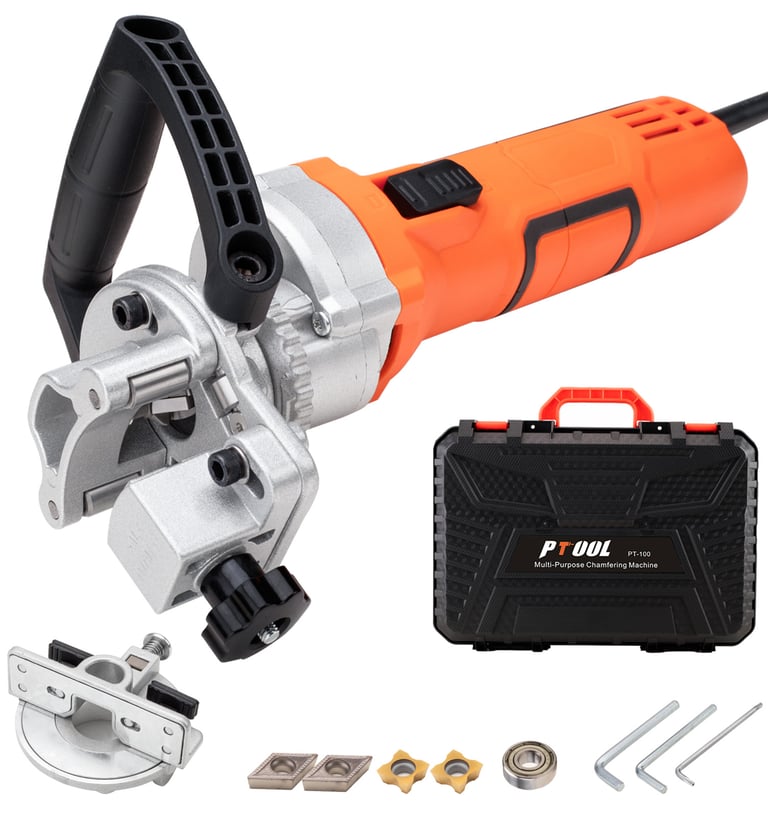

PT-100 Metal Chamfer Tool

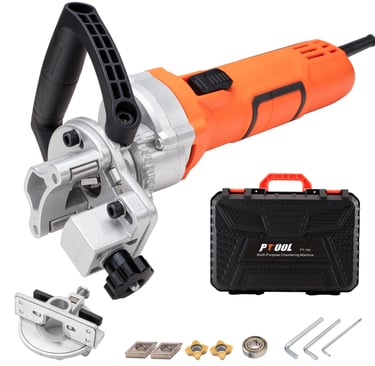

PT-100 Multi-Purpose Chamfering Machine

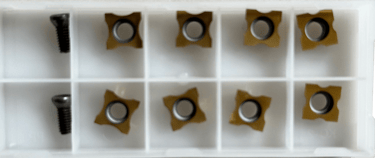

P clamp kit: suitable for chamfering of flat plates

G clamp kit: suitable for chamfering of round tubes

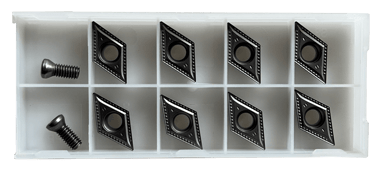

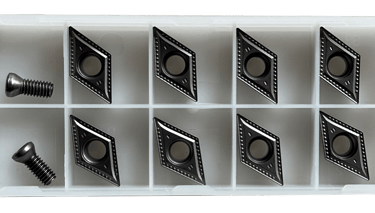

X clamp kit: suitable for chamfering of various complex parts, inner holes, and grooves

SKU: PT-100
AC power: 110V-120V 60HZ
Rated input power(W): 850
No-load speed(r/min): 1800
Size: 320mmX80mmX110mm
P Kit Chamfer Range: Bevel C0.5-C5, ARC R2-R5
G Kit Chamfer Range: Bevel C1-C5, ARC R2-R5, minimum pipe diameter Φ100mm
X Kit Chamfer Range: Bevel C0.5-C5, ARC R2-R5, minimum inner hole diameter Φ15mm.

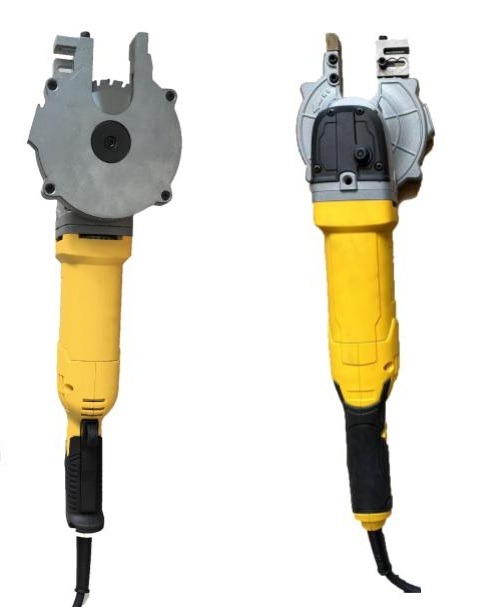

PT-101 Edge Cutting Saw

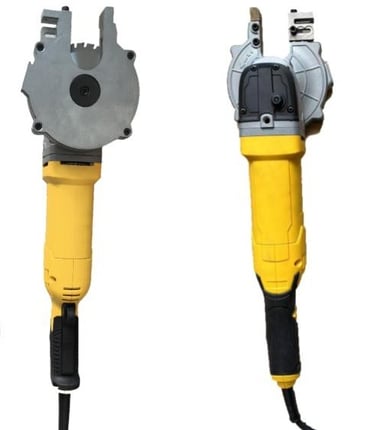

PT-101 Edge Cutting Saw

Designed for fast and efficient cutting of both ferrous and non-ferrous materials, it's ideal for flush or free-cutting rebar, coil rod, and all-threaded rod.

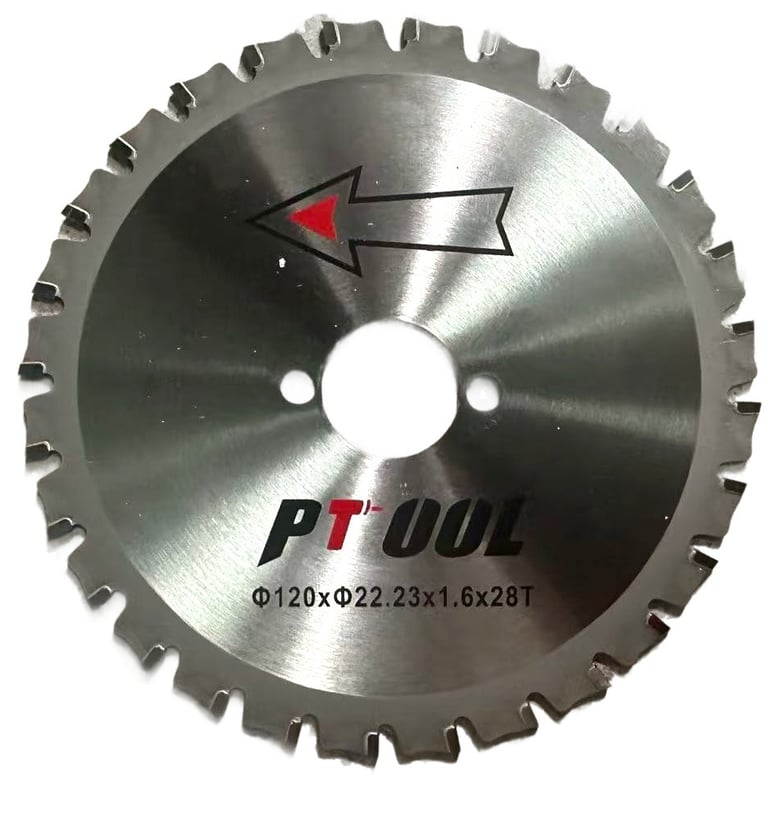

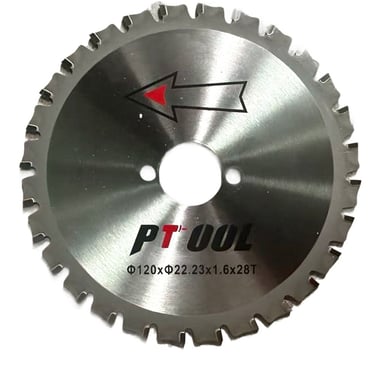

PT-101B Saw Blade

The included cold cut saw blade makes clean, precise cuts in metal with minimal heat and burrs
Over 800 cuts on 20mm rebar, with a typical lifespan from 600 to 1,000 cuts.

SKU: PT-101
Model No.: BY120
AC power: 110V-120V 60HZ/ 220-240V 50Hz
Rated input power(W): 1100
No-load speed(r/min): 2500
Blade diameter(mm): φ120
Cutting depth(mm): Max. φ36
Max torque(N.m): 4.2
Product dimension(inch): 15.2*5.5*4
Net weight(KG): 3

Constant speed
Overload protection
Power failure protection
Soft start (2S)

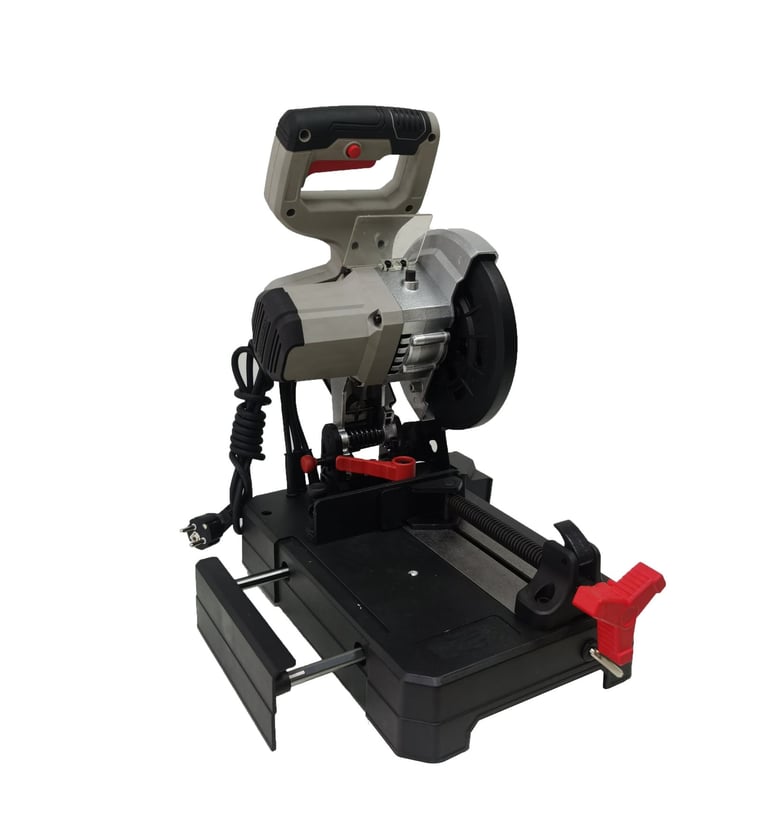

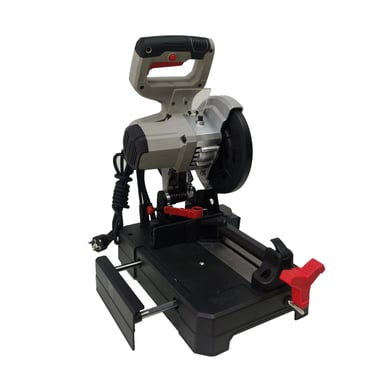

PT-102 Cutting Chop Saw

Multi-Materials Chop Saw

Brushless Motor

100% Higher Efficiency

50% Longer Motor Lifespin

50% Less Energy Cunsumption

One Blade for All Materials by Changing Cut Speed

SKU: PT-102

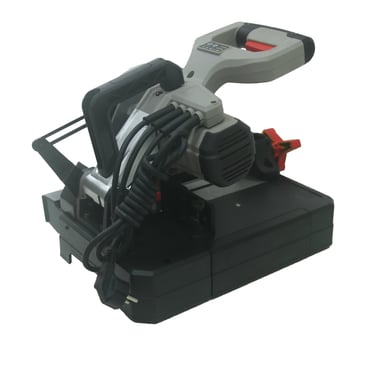

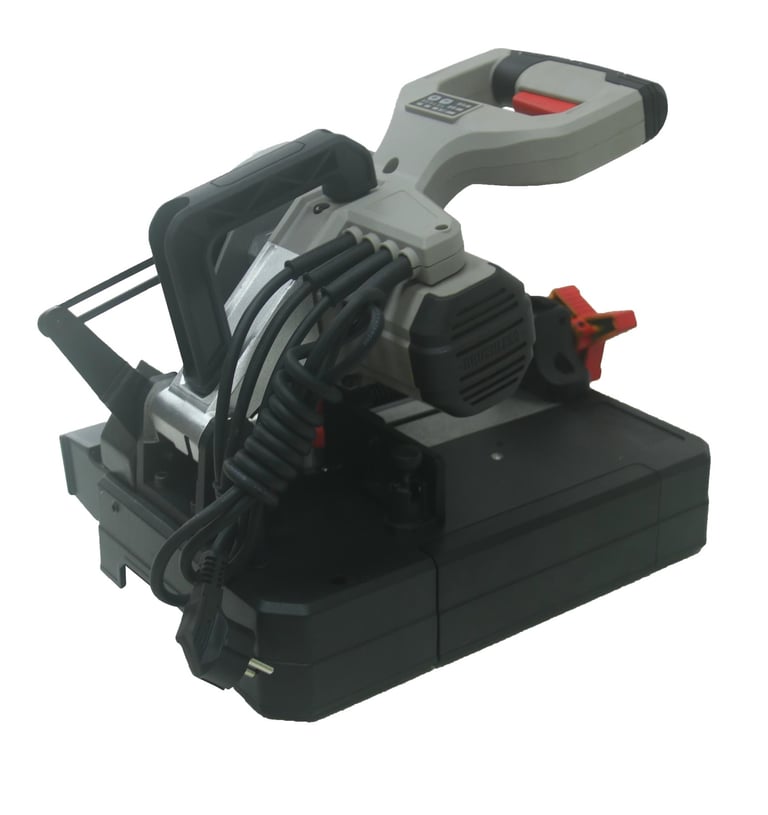

Model No. BW180
AC power: 110V-120V 60HZ/ 220-240V 50Hz
Rated input power(W) 1500
Cutting angle(°) 0-45
No-load speed(rpm) 1900/2300/2800
Cutting depth(inch) 2.2
Cutting capacity (shape/90°size/45°size)
Circulr/ φ55mm / φ45mm
Square/ 45x45mm / 40x40mm
Rectangle/ 35x85mm/ 30x80mm
Max torque(N.m) 9
Saw Blade size(inch) 7
Product dimension(inch) 16.2*9.45*13
Bare tool weight(KG) 8.9
Constant speed
Overload protection
Power failure protection
Soft start (2S)

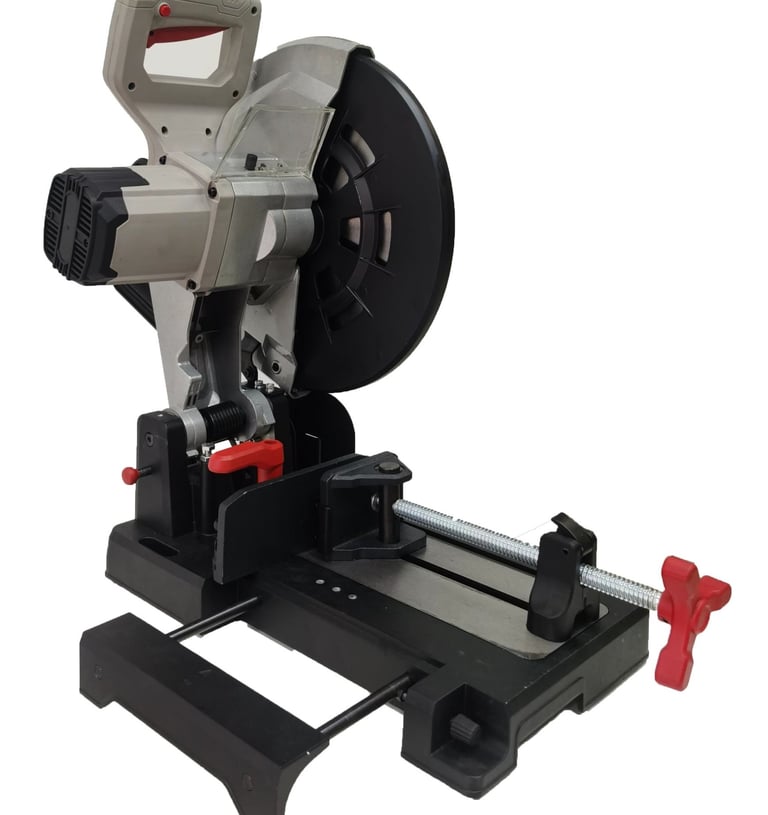

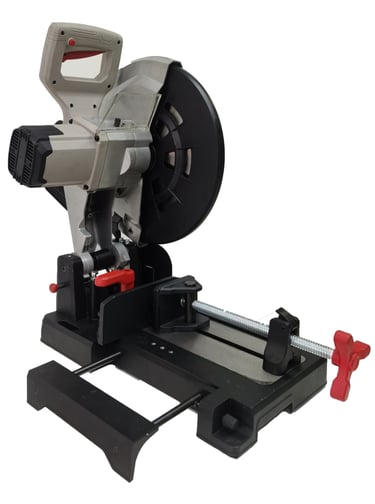

PT-103 Metal Cutting Chop Saw

PT-103 AC Brushless Metal Chop Saw

30% Higher Efficiency

50% Longer Motor Lifespin

Brushless Motor

SKU: PT-102
Model No. BW180
AC power: 110V-120V 60HZ/ 220-240V 50Hz
Rated input power(W) 2200
Cutting angle(°) 0-45
No-load speed(rpm) 1300
Cutting depth(inch) 5
Cutting capacity (shape/90°/size)
Circulr/ φ130mm
Square/ 125x125mm
Rectangle/ 110x170mm
Max torque(N.m) 9
Saw Blade size(inch) 7
Product dimension(inch) 20*12.2*16.9
Bare tool weight(KG) 25
Constant speed
Overload protection
Power failure protection
Soft start (2S)

PT-200 Dual Voltage Powder Coating Gun

Dual Voltage 15KV 25KV, Model PT-200
